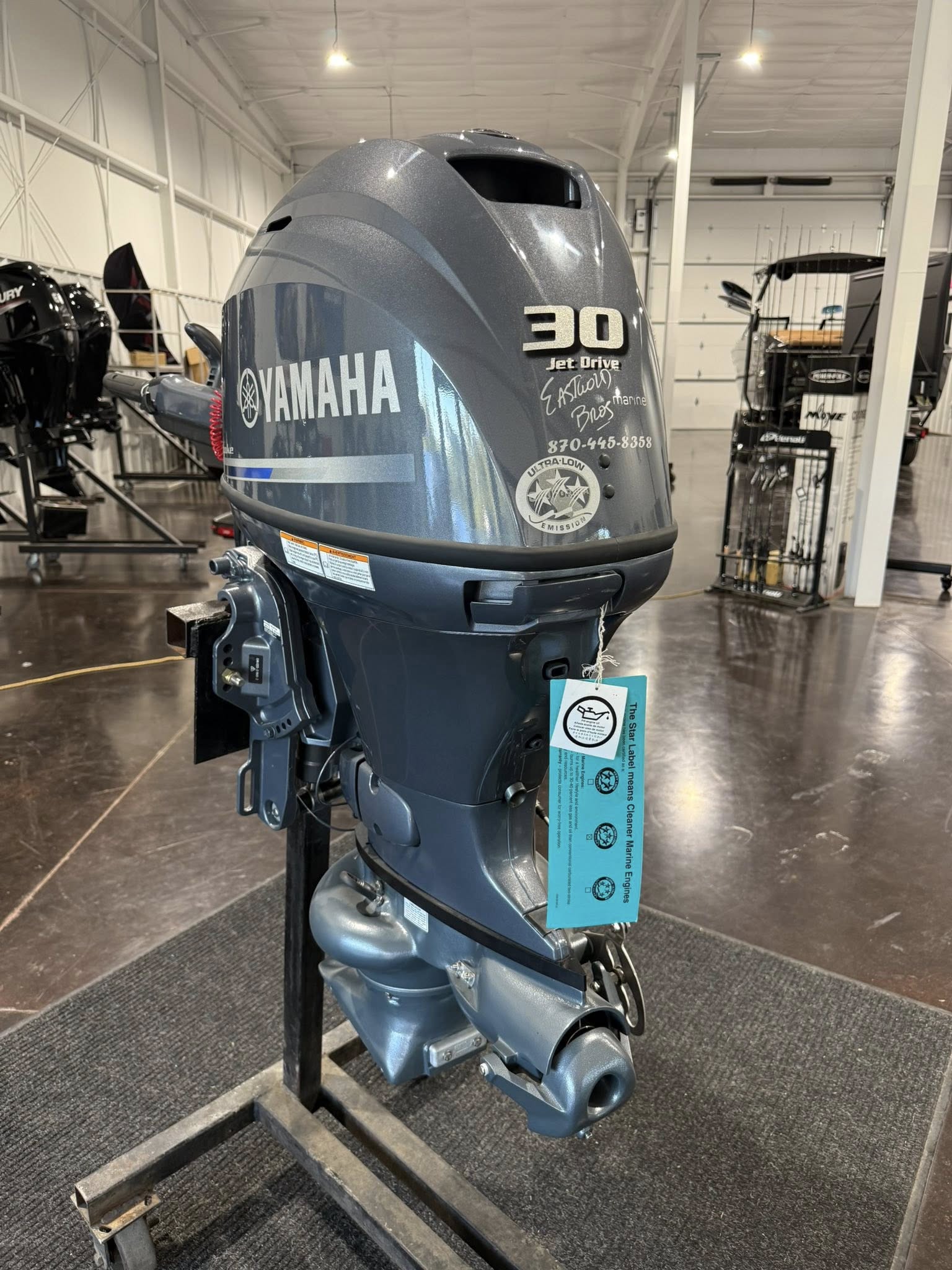

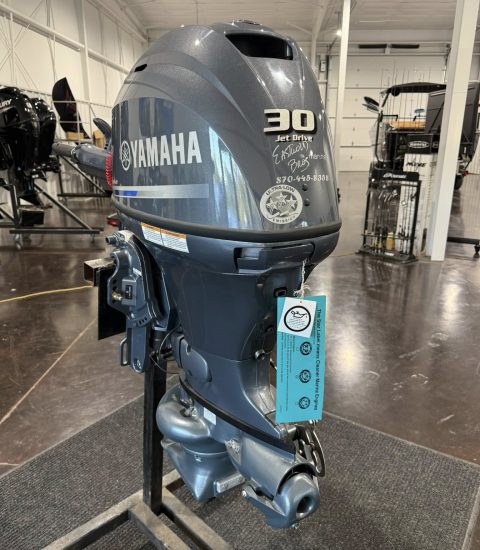

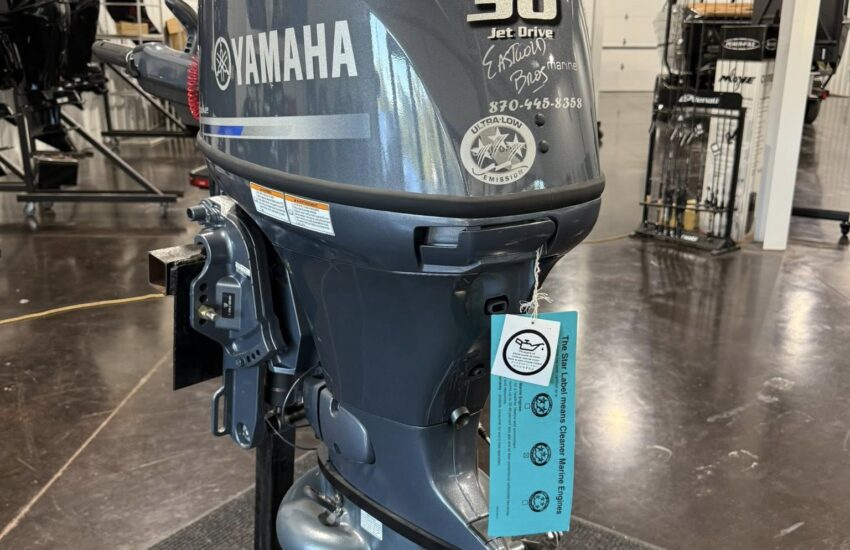

2026 Yamaha 30hp Jet Tiller
Overview
- Condition
- New
- Year
- 2026
- Make
- Yamaha
- Model
- Jet 30
- Horsepower
- 40 hp powerhead / 30 hp at the pump (30 hp @ 5500 rpm)
- Shaft Length
- Fits 20" transom
- Steering
- Tiller handle
- Starting
- Electric
- Availability
- In Stock
- Location
- Eastwold Brothers Marine, Bull Shoals, AR
Product Features
Description
Shallows. Rocky-bottom rivers. Shoals. White-water rapids. They'd all prove treacherous for a propeller-driven outboard, but Yamaha's Jet Drive outboards are all about it. You can "off-road" without the possibility of breaking a blade on rocks or other underwater obstructions. So while you may be giving up the prop, you're gaining a whole lot of freedom with a jet drive.
Yamaha's 747-cc F40 Jet Drive outboard produces 30 hp at the pump. Its compact, lightweight SOHC three-cylinder, in-line design features a long-track induction system and a single throttle valve, which creates compact, lightweight power and improves throttle response for shallow streams. This tiller-handle version comes with electric start and nitro-assist tilt and fits 20-inch transom boats.
With no gearcase or propeller extending below the hull, a jet drive lets you maneuver around or pass over obstructions that would limit the travel of a conventional propeller-driven outboard. Electronic fuel injection gives you responsive power with fuel-sipping efficiency.
Specifications28 specs
Specifications
| Model Code | F40JEHA (Jet, tiller, electric start) |
| Horsepower | 40 hp powerhead / 30 hp at the pump (30 hp @ 5500 rpm) |
| Engine Type | In-line 3-cylinder, SOHC |
| Displacement | 747 cc |
| Bore x Stroke | 65 x 75 mm (2.56 x 2.95 in) |
| Compression Ratio | 9.4:1 |
| Fuel System | EFI |
| Full Throttle RPM Range | 5000-6000 rpm |
| Ignition | CDI Microcomputer |
| Spark Plug | DPR6EB-9 |
| Starting | Electric |
| Steering | Tiller handle |
| Steering Angle | 40° from center, either direction |
| Trim & Tilt | Nitro-assist tilt; tilt 65°, trim -4° through +16° |
| Shaft Length | Fits 20" transom |
| Gear Ratio | Direct drive |
| Gear Shift | Forward, Neutral, Reverse |
| Exhaust | Through jet nozzle |
| Alternator | 16 amp at W.O.T. |
| Lubrication | Wet sump |
| Engine Oil Capacity | 1.7 L / 1.5 L |
| Recommended Engine Oil | Yamalube 4M |
| Cooling | Thermostatic control |
| Weight | 219-227 lbs (99-103 kg), including jet pump assembly (weight estimated) |
| Recommended Fuel | 87 octane; 10% maximum ethanol blend |
| Recommended Fuel Filtration | Yamaha 10-micron fuel/water separating filter (external) |
| C.A.R.B. Rating | 2-Star |
| Color | Gray |
Features11 items
- Jet drive: no gearcase or propeller extends below the hull, so you can maneuver around or pass over obstructions that would stop a propped outboard
- Compact, lightweight SOHC in-line three-cylinder design with long-track induction system and single throttle valve for better throttle response
- Composite intake manifold with long tube intake tracks tuned to increase airflow, boosting low-end and midrange torque for a stronger hole shot; air silencer box and surge tank reduce intake noise
- Electronic fuel injection for responsive power and fuel efficiency
- Microcomputer ignition adjusts timing to maintain optimum performance, economy and power under all conditions
- Electric start
- Tiller handle
- Nitro-assist tilt
- Freshwater flush device lets you flush the engine without running it
- Engine Control Module interfaces with Yamaha Diagnostic System software so technicians can see past and current running conditions (all jet models)
- YDC-30 aluminum alloy plus Phaze Five five-layer anti-corrosive paint system (standard on all Yamaha Jet Drive outboards)
Warranty & Package2 items
- Yamaha limited warranty: 3 years pleasure boat / 1 year commercial
- Fuel hose assembly included as standard equipment (Yamaha price list note for four-stroke F4 through F70 models)
Specifications and standard features from Yamaha Outboards. Equipment may vary by unit – confirm with Eastwold Brothers Marine.
